• Quantity per packing unit: 25
• Inner Diameter [mm]: 11
• Outer Diameter [mm]: 17.5
• Thickness [mm]: 3
• Material: Copper
• Shape: angled
• Alternative Repair Kit: 036.400, 505.550, 505.540
• Manufacturer: ELRING
• Lisainfo: 776.327 ELR
• Additional information: 776.327 ELR

• Quantity per packing unit: 25
• Inner Diameter [mm]: 15
• Outer Diameter [mm]: 22
• Thickness [mm]: 3
• Material: Copper
• Shape: angled
• Alternative Repair Kit: 036.400, 505.550
• Manufacturer: ELRING

• Quantity per packing unit: 10
• contains article number: 13454
• External Thread Size: M14 x 1,25
• Thread Length [mm]: 19
• Spanner Size: 21
• Electrode Gap [mm]: 0.7
• Spark Plug: with gasket seat, 1 - Earthed Electrode
• Weight [kg]: 0.04
• Manufacturer: FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Construction Year to: 04.1992
• Engine Code: Z24i
• Required quantity: 4
• Quantity per packing unit: 10
• Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode
• Thread Length [mm]: 19
• Diameter [mm]: 14
• for OE number: 21013707001
• Connector type: Removable SAE
• Spanner Size: 20.6
• Tightening Torque [Nm]: 22
• Weight [g]: 56
• Gross Weight [g]: 59
• alternative item: W20TT
• Manufacturer: DENSO
• Name: DN W20EPRU

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• for OE number: 22401W8915
• Required quantity: 4
• Electrode Gap [mm]: 0.8
• Tightening Torque [Nm]: 28
• Thread Size: M 14 x 1,25
• Thread Length [mm]: 19
• Spanner Size: 20,8
• Spark Position [mm]: 3
• Number of pins: 1
• Manufacturer: BOSCH
• Name: BS 0241229715

• Engine Code: Z24i
• Tightening Torque [Nm]: 25
• Electrode Gap [mm]: 0.8
• Thread Size: M14 x 1,25
• Spanner Size: 20,8
• Spark Plug: 1 - Earthed Electrode
• Thread Length [mm]: 19
• Assy./disassy. by qualified personnel required!:
• Name: HE 8EH188704001
• Manufacturer: HELLA

• Engine Code: Z24i
• Electrode Gap [mm]: 0.7
• Spark Plug: 1 - Earthed Electrode
• Manufacturer: VEMO GERMANY

General Information: In the warranty, we always make a distinction between wear parts and vehicle parts. All wear parts are subject to a reduced warranty period and a maximum mileage. Brake components such as brake disks, brake pads, etc. maximum of 1000 km (break-in period). Therefore, warranty claims for brake parts are only reviewed with an installation invoice and a record of the wheel hub run-out measurement, including photos. For brake disks and brake pads, the break-in requirements specified by the vehicle manufacturer must be observed. When replacing brakes, the chassis components must always be checked with regard to clearance and the wheel hub with regard to wobble, and the appropriate documentation must be produced. If the vehicle is no longer in its original condition due to tuning work such as wheel accessories and tracking plates, the entitlement to make warranty claims is lost due to third-party work. The same warranty claims are lost if the vehicle is used for motor sports or similar events.

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• for OE number: 22401W8916
• Required quantity: 4
• Electrode Gap [mm]: 0.8
• Tightening Torque [Nm]: 28
• Thread Size: M 14 x 1,25
• Thread Length [mm]: 19
• Spanner Size: 20,8
• Spark Position [mm]: 3
• Number of pins: 1
• Manufacturer: BOSCH
• Name: BS 0242235663

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• Supplementary Article/Info 2: with resistor
• Required quantity: 4
• Electrode Gap [mm]: 1.1
• Tightening Torque [Nm]: 28
• Thread Size: M 14 x 1,25
• Thread Length [mm]: 19
• Spanner Size: 20,8
• Spark Position [mm]: 3
• Number of pins: 1
• Manufacturer: BOSCH
• Name: BS 0242229687

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• for OE number: 22401W8914
• Required quantity: 4
• Electrode Gap [mm]: 0.8
• Tightening Torque [Nm]: 28
• Thread Size: M 14 x 1,25
• Thread Length [mm]: 19
• Spanner Size: 20,8
• Spark Position [mm]: 3
• Number of pins: 1
• Manufacturer: BOSCH
• Name: BS 0242225599

• Engine Code: Z24i
• Required quantity: 8
• Spanner Size: 20,8 mm
• Thread Size: M14 x 1,25
• Thread Length [mm]: 19
• Spark Position [mm]: 3
• Manufacturer: NGK

Spark Plug: Two identical spark plugs per cylinder, Unscrewable SAE connector, Nickel Middle Electrode, 1 - Earthed Electrode, Interference Suppression 5 kOhm, with gasket seat

• Engine Code: Z24i
• Required quantity: 8
• Quantity per packing unit: 4
• Spanner Size: 20,8 mm
• Thread Size: M14 x 1,25
• Thread Length [mm]: 19
• Spark Position [mm]: 3
• Manufacturer: NGK
• Name: NG V-LINE 6

Spark Plug: Two identical spark plugs per cylinder, Unscrewable SAE connector, Nickel Middle Electrode, 1 - Earthed Electrode, Interference Suppression 5 kOhm, with gasket seat

• Driven Units: Alternator
• Tensile Cord Material: Polyester
• Belt Material: Polychloroprene (Neoprene)
• Colour: black
• Width [mm]: 10
• Length [mm]: 938
• Outer Length [mm]: 948
• Manufacturer: GATES

• Fitting Position: both sides
• Length [inch]: 19
• Length [mm]: 480
• Wiper blade type: Bracket wiper blade
• Fastening Type: Hook fixing
• Weight [kg]: 0.11
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Construction Year to: 04.1992
• Engine Code: Z24i
• Required quantity: 4
• Quantity per packing unit: 4
• Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode
• Thread Length [mm]: 19
• Diameter [mm]: 14
• Country Specific Design: Japan
• Connector type: Crimped SAE
• Spanner Size: 20.6
• Tightening Torque [Nm]: 22
• Weight [g]: 58
• Gross Weight [g]: 61
• alternative item: IW20TT, IW20
• Manufacturer: DENSO
• Name: DN W20TT
• Quality class: Q

Additional information: "Tootja: DENSO
(kvaliteediklass: Q)" Lisainfo: "Tootja: DENSO
(kvaliteediklass: Q)"

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• Driven Units: Alternator
• Length [mm]: 930
• Width [mm]: 10
• Belts: Open-sided, Toothed
• Manufacturer: BOSCH
• Name: BS 1987947609

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• Driven Units: Air conditioning compressor
• Length [mm]: 850
• Width [mm]: 13
• Belts: Open-sided, Toothed
• Manufacturer: BOSCH
• Name: BS 1987947651

• Fitting Position: Front
• Length [mm]: 500
• Matching Adapter: V12
• Manufacturer: MAGNETI MARELLI

• Construction Year from: 08.1990
• Length [mm]: 260
• Width [mm]: 100
• Height [mm]: 25
• Filter type: Pollen Filter
• Manufacturer: KAVO PARTS

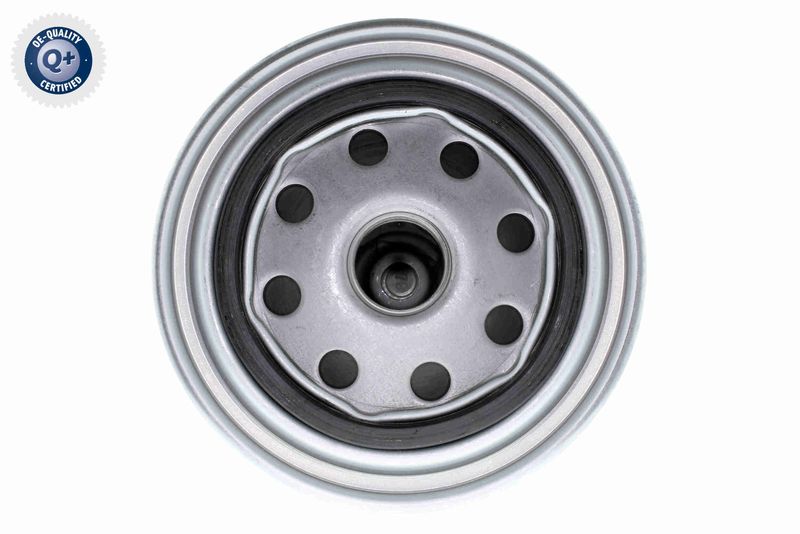

• Construction Year from: 08.1986
• Engine Code: Z24
• Filter type: Spin-on Filter
• Diameter [mm]: 93
• Thread Size: 3/4"-16UNF-2B
• Diameter 2 [mm]: 76.4
• Manufacturer: ACKOJA

General Information: In the warranty, we always make a distinction between wear parts and vehicle parts. All wear parts are subject to a reduced warranty period and a maximum mileage. Brake components such as brake disks, brake pads, etc. maximum of 1000 km (break-in period). Therefore, warranty claims for brake parts are only reviewed with an installation invoice and a record of the wheel hub run-out measurement, including photos. For brake disks and brake pads, the break-in requirements specified by the vehicle manufacturer must be observed. When replacing brakes, the chassis components must always be checked with regard to clearance and the wheel hub with regard to wobble, and the appropriate documentation must be produced. If the vehicle is no longer in its original condition due to tuning work such as wheel accessories and tracking plates, the entitlement to make warranty claims is lost due to third-party work. The same warranty claims are lost if the vehicle is used for motor sports or similar events.

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• Required quantity: 4
• Electrode Gap [mm]: 0.9
• Tightening Torque [Nm]: 28
• Thread Size: M 14 x 1,25
• Thread Length [mm]: 19
• Spanner Size: 20,8
• Spark Position [mm]: 3
• Number of pins: 1
• Name: BS 0242230599
• Manufacturer: BOSCH

• Fitting Position: Passenger Side
• Matching Adapter: HKSTD
• Length [mm]: 480
• Length [inch]: 19
• Weight [g]: 111
• Name: TR EF480
• Manufacturer: TRICO

Left-/right-hand drive vehicles: for left-hand drive vehicles, for right-hand drive vehicles

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• Driven Units: Power steering pump
• Length [mm]: 1,200
• Width [mm]: 13
• Belts: Open-sided, Toothed
• Manufacturer: BOSCH
• Name: BS 1987947663

• Engine Code: Z24i
• Tightening Torque [Nm]: 25
• Electrode Gap [mm]: 0.8
• Thread Size: M14 x 1.25
• Spanner Size: 20,8
• Spark Plug: 1 - Earthed Electrode
• Thread Length [mm]: 19
• Assy./disassy. by qualified personnel required!:
• Name: HE 8EH188705121
• Manufacturer: HELLA

• Driven Units: Alternator
• Vehicle configuration line / variant: COG
• Length [mm]: 910
• Manufacturer: DAYCO
• Name: DA A11 0910C

• Fitting Position: Passenger Side
• Matching Adapter: HKSTD
• Length [mm]: 500
• Length [inch]: 20
• Weight [g]: 118
• Name: TR EF500
• Manufacturer: TRICO

Left-/right-hand drive vehicles: for left-hand drive vehicles, for right-hand drive vehicles

• Driven Units: Air conditioning compressor
• Tensile Cord Material: Polyester
• Belt Material: Polychloroprene (Neoprene)
• Colour: black
• Width [mm]: 13
• Length [mm]: 850
• Outer Length [mm]: 865
• Manufacturer: GATES

• Quantity per packing unit: 10
• Inner Diameter [mm]: 12
• Outer Diameter [mm]: 17
• Thickness [mm]: 3
• Material: Copper
• Alternatively:
• Manufacturer: FISCHER

• Quantity per packing unit: 10
• Inner Diameter [mm]: 15
• Outer Diameter [mm]: 22
• Thickness [mm]: 3
• Material: Copper
• Alternatively:

• Construction Year from: 08.1986
• Engine Code: Z24
• Filter type: Spin-on Filter
• Height [mm]: 97
• Thread Size: UNF 3/4" -16
• Outer Diameter [mm]: 94
• Inner Diameter 1 [mm]: 72
• Inner Diameter 2 [mm]: 62
• Bypass Valve Opening Pressure [bar]: 1
• Manufacturer: VALEO

• Driven Units: Power steering pump
• Vehicle configuration line / variant: COG
• Width [mm]: 13
• Length [mm]: 1,150
• Name: DA A13 1150C
• Manufacturer: DAYCO

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• Filter type: Spin-on Filter
• Height [mm]: 98
• Thread Size: 3/4" 16 UNF-2B
• Outer Diameter [mm]: 93
• Gasket outside diameter [mm]: 71
• Gasket inside diameter [mm]: 62
• Manufacturer: BOSCH

• Fitting Position: Driver side, Passenger Side
• Fastening Type: Hook fixing
• Block Separation:
• Length [inch]: 19
• Length [mm]: 480
• Wiper blade type: Flat wiper blade
• Weight [kg]: 0.1
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Driver side, Passenger Side
• Fastening Type: Hook fixing
• Block Separation:
• Length [mm]: 480
• Supplementary Article/Info 2: without integrated washer fluid jet
• not for country specific design: Great Britain
• Wiper blade type: Flat wiper blade
• Manufacturer: KAVO

• Driven Units: Power steering pump
• Tensile Cord Material: Polyester
• Belt Material: Polychloroprene (Neoprene)
• Colour: black
• Width [mm]: 13
• Length [mm]: 1,175
• Outer Length [mm]: 1,190
• Manufacturer: GATES

• Construction Year to: 07.1992
• Filter type: Spin-on Filter
• Diameter [mm]: 91
• Height [mm]: 98
• Thread Size: 3/4"-16UNF-2B
• Diameter 2 [mm]: 71.5
• Sealing Ring Diameter [mm]: 61.5
• Tightening Torque [Nm]: 20
• Article number of the recommended special tool: OCS 2
• Supplementary Article/Info 2: with one anti-return valve
• Packaging height [cm]: 10.3
• Net Weight [g]: 456
• Packaging length [cm]: 9.8
• Packaging width [cm]: 9.8
• Manufacturer: FILTRY KNECHT / MAHLE
• Name: KN OC140

• Quantity per packing unit: 10
• Inner Diameter [mm]: 11
• Outer Diameter [mm]: 17.5
• Material: Copper
• Shape: angled
• Thickness [mm]: 3
• Quantity: 10
• Manufacturer: DR MOTOR PRZEWODY PRZELEWOWE

Brief Information: Always compare old and new part (in particular OE No.)

• Construction Year to: 04.1992
• Engine Code: Z24i
• Required quantity: 4
• Fuel Type: CNG/LPG
• Quantity per packing unit: 4
• Thread Length [mm]: 19
• Diameter [mm]: 14
• Country Specific Design: Japan
• Connector type: Solid SAE
• Spanner Size: 20.6
• Tightening Torque [Nm]: 22
• Weight [g]: 58
• Gross Weight [g]: 61
• alternative item: IW20TT
• Manufacturer: DENSO
• Name: DN IW20TT
• Quality class: Q

Spark Plug: with resistor, 1 - Earthed Electrode, Iridium Middle Electrode Additional information: "Tootja: DENSO
(kvaliteediklass: Q)" Lisainfo: "Tootja: DENSO
(kvaliteediklass: Q)"

• Fitting Position: both sides
• Length [inch]: 19
• Length [mm]: 480
• Wiper blade type: Hybrid Wiper Blade
• Fastening Type: Hook fixing
• Weight [kg]: 0.1
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Engine Code: Z24i
• Required quantity: 8
• Spanner Size: 20,8 mm
• Thread Size: M14 x 1,25
• Thread Length [mm]: 19
• Spark Position [mm]: 3
• Manufacturer: NGK - NTK

Spark Plug: Two identical spark plugs per cylinder, Unscrewable SAE connector, Iridium Middle Electrode, 1 - Earthed Electrode, Interference Suppression 5 kOhm, with gasket seat

• Construction Year from: 08.1986
• Construction Year to: 07.1992
• Quantity Unit: Kit
• Electrode Gap [mm]: 1.1
• Tightening Torque [Nm]: 28
• Thread Size: M 14 x 1,25
• Thread Length [mm]: 19
• Spanner Size: 20,8
• Spark Position [mm]: 5
• Number of pins: 4
• Manufacturer: BOSCH SWIECE ZAPLONOWE/ZAROWE

• Engine Code: Z24i
• Required quantity: 8
• Spanner Size: 20,8 mm
• Thread Size: M14 x 1,25
• Fuel Type: CNG/LPG
• Recommended change interval [km]: 60,000
• Manufacturer: NGK
• Lisainfo: LPG2
• Additional information: LPG2

Spark Plug: Two identical spark plugs per cylinder, Unscrewable SAE connector, Iridium Middle Electrode

• Quantity per packing unit: 100
• Inner Diameter [mm]: 12
• Outer Diameter [mm]: 17
• Thickness [mm]: 3
• Material: Copper

• Quantity per packing unit: 100
• Inner Diameter [mm]: 15
• Outer Diameter [mm]: 22
• Thickness [mm]: 3
• Material: Copper

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Oil: Mineral Oil
• SAE viscosity class: 10W-40
• Capacity [litre]: 0

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Specification: API SF/CD
• SAE viscosity class: 10W-30
• Oil manufacturer recommendation: MIL-L-46152C

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Specification: API SG/CF-4, MIL-L-2104D
• Capacity [litre]: 0
• SAE viscosity class: 20W-50

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Specification: API SG/CF-4, MIL-L-2104D, MIL-L-46152
• SAE viscosity class: 15W-40

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Oil: Mineral Oil
• Oil manufacturer recommendation: Volvo VDS
• SAE viscosity class: 10W-30

Specification: ACEA A2/B2, ACEA B3, ACEA E2, Allison C-4, API CF, API SJ/CG-4, Mack EO/L, MAN 271, MB 228.1, MTU type 2, Volvo VDS, VW 501.01, VW 505.00 (97)

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Specification: ACEA A3/B4, API SJ/SL
• Capacity [litre]: 0

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Specification: ACEA A3/B4, MB 229.1
• SAE viscosity class: 10W-40

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Oil: Full Synthetic Oil
• SAE viscosity class: 5W-50
• Oil manufacturer recommendation: Renault RN0710

Specification: Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Oil: Full Synthetic Oil
• SAE viscosity class: 5W-30

Specification: API SN/CF, MB 229.3, MB 229.5, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

• Fill quantity from [l]: 3.8
• Fill capacity to [l]: 4.3
• Fill quantity [l]: 4.3
• Oil manufacturer recommendation: Allison C-4
• SAE viscosity class: 15W-40

Specification: ACEA A2, ACEA A2/B2, ACEA B3, ACEA E2, Allison C-4, API CF, API CH-4, API SJ/CG-4, Mack EO/L, MAN 271, MB 228.1, MTU type 2, Volvo VDS, VW 501.01/505.00 (97
